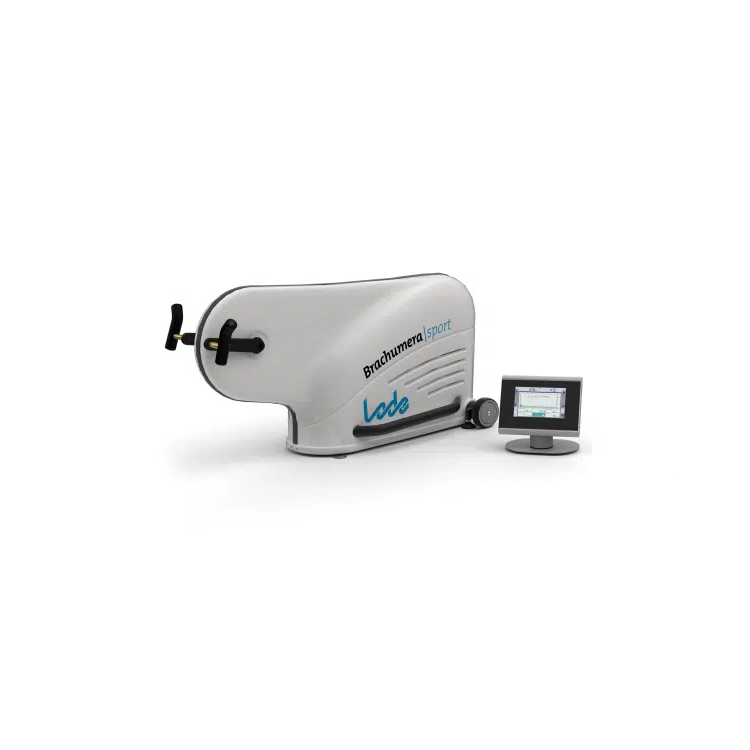

The Brachumera Sport is a modern and reliable arm ergometer that can be controlled both manually and by external equipment.
Brachumera Sport is currently used in Olympic and professional sports where the muscles in the arms and shoulders play a major role, e.g. kayaking and swimming.
Pedal Force Measurement allows for analysis of force balance and stroke efficiency.
The arm ergometer for sports can deliver a load up till 2500 Watt.
It can be connected to Lode Ergometry Software for data management, protocol creation and execution.
This ergometer has built-in modified strain gauge technology that measures forces exerted on the pedals during exercise and is supplied with angle detection.
Independent measurements of forces in both left and right crank are possible.
Wireless transmission of the measured forces to the PC by bluetooth.
Note: this setting comes standard with LEM and LEM PFM software, a computer (we recommend to use this PC only for the LEM software) and an interface cable ergometer - PC (part no. 930911).
Various LEM extension modules are optional available.
Extreme Workload Range of 8 - 2500 watt
The extraordinary workload range of 8-2500 watt is unique in the world! It makes this ergometer extremely suitable for sports medicine and testing the strongest athletes in the world on their anaerobic power or isokinetic capacity.
Left & Right Independent Measurements
The PFM is not only the summation of left and right, but real left and right independent measurements. Differences between the left and right pedal movement, before and after surgery or at different workload can be detected. A real diagnostic tool!
Special Analysis & Polar Graphs
Analysis and Polar graphs are specifically designed for pedal force measurement
LEM PFM Included
The LEM software with PFM module is standard included
Measurement Every 2 Degrees
The accuracy of the PFM during the total revolution is obtained by the placement of highly specific strain gauges in the crank axis making it possible to measure the pedal force every 2 degrees during each revolution during the exercise test.
