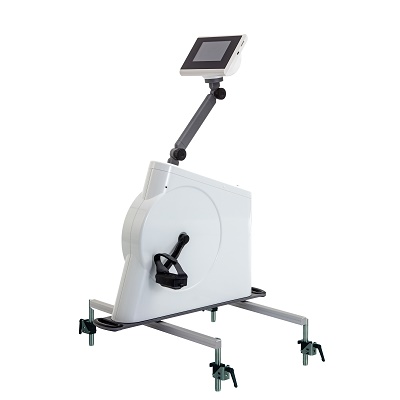

The Angio is supplied with a multifunctional fixation set that allows the ergometer to be securely mounted to imaging, physiotherapy, or examination tables equipped with a standard 25 × 10 mm instrument side rail.
The fixation set includes pedal shoes and supports a wide adjustment range, with widths from 625 to 903 mm and height adjustment from 20 to 120 mm.
A fixation option is also available for smaller tables; the table width should always be verified prior to installation.
The Angio Rehab is supplied as standard with a 7-inch touchscreen control unit.
A built-in network module enables connectivity with Lode Cardiac Rehab Manager Software, Lode Rehab Manager, or Lode Ergometry Manager for data management and workflow integration.
A USB A–B cable is included for service purposes only.
Lode products are manufactured to high quality, safety, and sustainability standards. All products are RoHS and WEEE compliant, with ISO 9001:2015 and ISO 13485:2016 certification. Medical devices comply with MDD 93/42/EEC, including IEC 60601-1 requirements.
The Angio delivers highly reliable and reproducible stress testing across the full workload and RPM range, maintaining accuracy even after years of intensive use.
Multiple test modes are supported, including hyperbolic (RPM-independent), fixed torque, and linear modes, all available in both manual and terminal operation. Its versatile design allows use across a wide range of ergometry applications, while smooth housing surfaces and durable materials make the system easy to clean and maintain.
