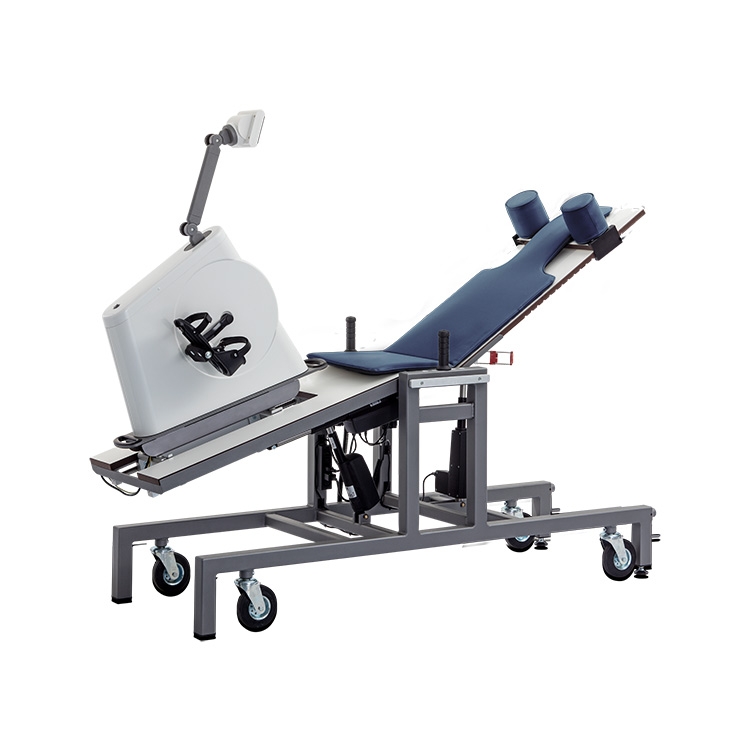

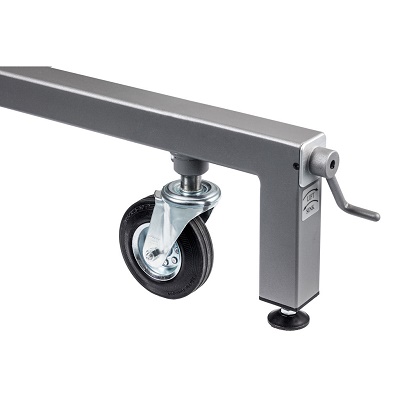

The Stress Support for Radiology is an electrically adjustable table designed for reclining ergometry in imaging and diagnostic environments. Its robust steel construction ensures excellent stability, while retractable castor wheels allow the table to be easily repositioned when needed.

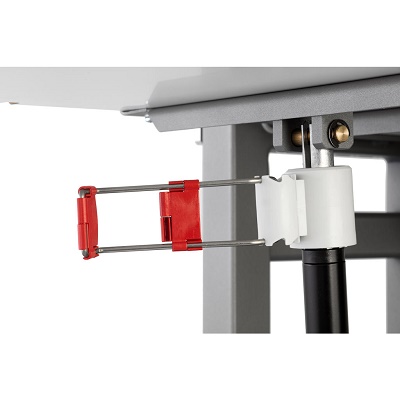

An adjustable shoulder support helps maintain patient stability to support clear imaging during exercise.
The leg and back support panels operate independently and are electrically actuated via remote control. The back support is constructed from radiolucent material to avoid interference with imaging procedures.
Electrical fore–aft adjustment of the ergometer allows precise positioning to accommodate a wide range of patient body sizes.
The Angio Imaging ergometer supports both seated arm ergometry and supine ergometry. Its compact design makes it well suited for use in clinical areas where conventional ergometry systems cannot be applied.
The ergometer provides cadence-independent workload control from 7 to 1000 watts, enabling use across a broad range of diagnostic and exercise protocols.
The Angio Imaging is supplied as standard with a communication module, allowing seamless control by commonly used stress ECG and pulmonary diagnostic systems.

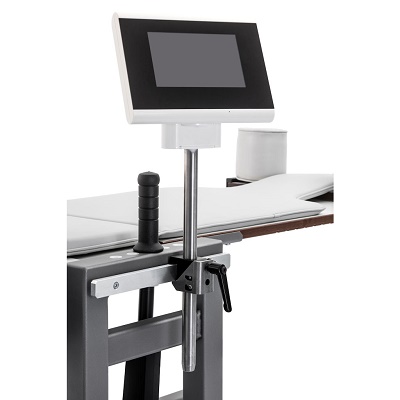

Workload, RPM, and time are displayed on a 7-inch color screen, and the unit is delivered with standard pedals.
For 115V configurations, part number 967940 should be specified at the time of ordering.
The patient bed is designed for comfort and accessibility, featuring a soft surface, easy step-up height, integrated bedcover roll, headrests, and handgrips.
The system supports multiple ergometry configurations, enabling flexible use across different clinical applications.
Lode ergometers are recognized for their reliable and reproducible stress testing performance across the full workload and RPM range, maintaining accuracy even after years of intensive use.
Multiple test modes are available, including hyperbolic (RPM-independent), fixed torque, and linear modes, all usable in both manual and terminal operation.
All Lode products are manufactured to high quality and sustainability standards. They are RoHS and WEEE compliant, certified to ISO 9001:2015 and ISO 13485:2016, and all medical devices comply with MDD 93/42/EEC, including IEC 60601-1 requirements.
